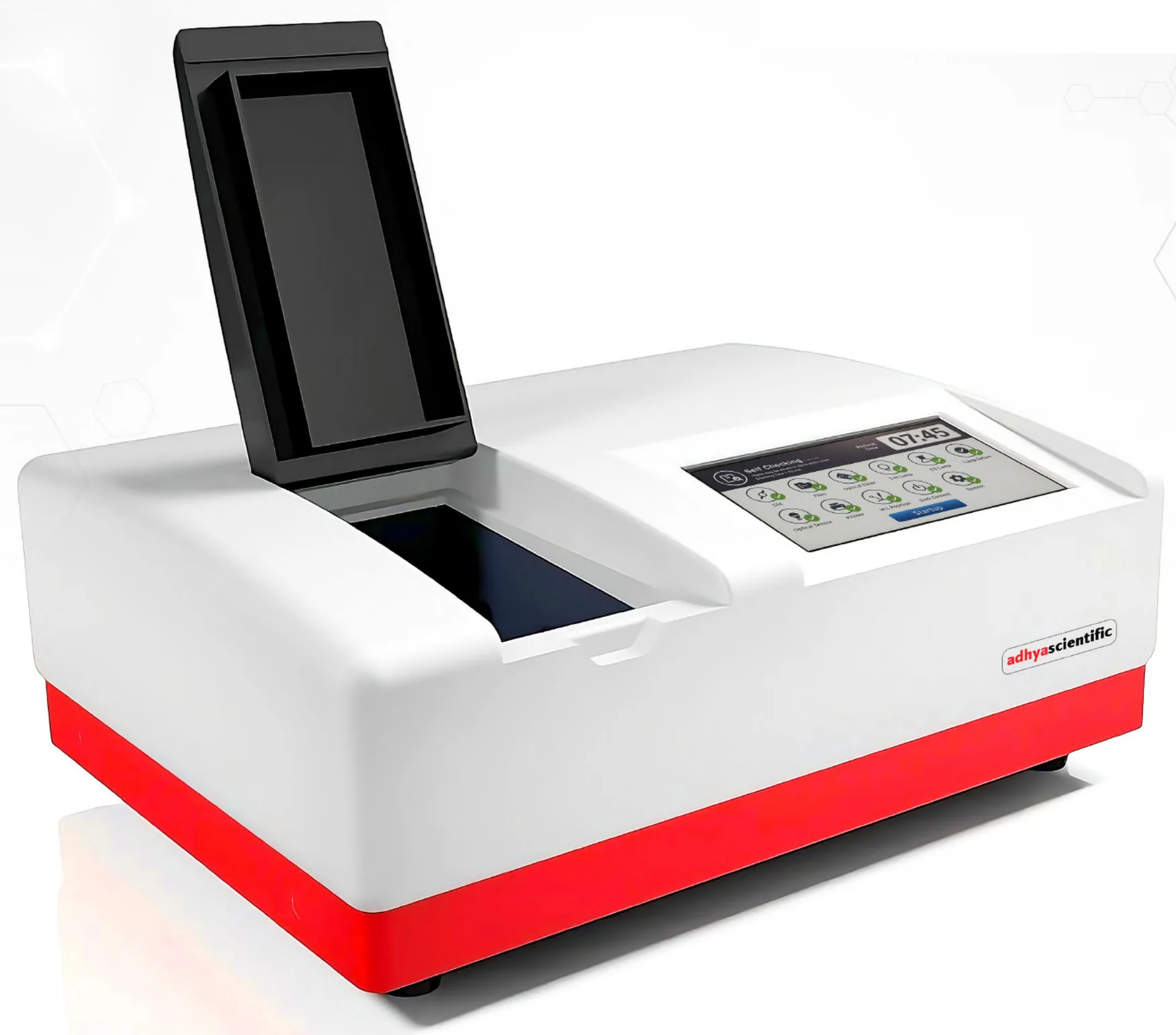

SUV-1200 Series UV-Vis Double Beam

General and Optics

• Models: SUV-1201, SUV-1202 and SUV-1205 (deuterium and tungsten lamps); SUV-1201 Xe and SUV-1202 Xe (xenon lamp)
• Optical System: Double beam. One beam passes through the sample and the other serves as a reference, so readings stay steady even if the lamp fluctuates
• Wavelength Range: 190–1100 nm
• Spectral Bandwidth: 1 nm (SUV-1201); 2 nm (SUV-1202); selectable 0.5 / 1 / 2 / 4 / 5 nm (SUV-1205)

Accuracy and Measurement Performance

• Wavelength Accuracy: ±0.1 nm at the D2 peak (656.1 nm); ±0.3 nm across the whole range
• Wavelength Reproducibility: ±0.1 nm
• Scan Speed: Up to approx. 3000 nm/min
• Photometric Accuracy: ±0.2%T (0–100%T); ±0.002 Abs (0–0.5 Abs); ±0.004 Abs (0.5–1 Abs)
• Photometric Reproducibility: ±0.15%T (0–100%T); ±0.001 Abs (0–0.5 Abs); ±0.002 Abs (0.5–1 Abs)
• Transmittance Range: 0–200%T
• Absorbance Range: -0.3 to 3 Abs
• Stray Light: ≤0.02%T at 220 nm (NaI) and 340 nm (NaNO2); ≤1%T at 198 nm (KCl)
• Baseline Stability: ±0.0003 Abs/h at 500 nm
• Baseline Flatness: ±0.0006 Abs
• Noise (at 500 nm): ≤0.0001 A peak to peak; ≤0.00005 A RMS

Operation

• Measurement Modes: %T, Abs, Concentration and E
• Scan Speed Settings: Fast, medium or slow
• Wavelength Setting: Automatic
• Display: 10.1-inch colour TFT capacitive touch screen

Hardware

• Light Source: Deuterium and tungsten lamps (Xe models use a xenon lamp)
• Detector: 2 silicon photodiodes
• PC Connection: USB / RS232 port
• Power Supply: AC 110–230 V, 50–60 Hz

Dimensions and Packaging

• Dimensions: 590 x 475 x 250 mm (SUV-1201, SUV-1202, Xe models); 760 x 560 x 280 mm (SUV-1205)
• Net Weight: 20 kg (SUV-1201, SUV-1202, Xe models); 28 kg (SUV-1205)
• Shipping Size: 770 x 630 x 340 mm (SUV-1201, SUV-1202, Xe models); 880 x 690 x 520 mm (SUV-1205)
• Gross Weight: 27 kg (SUV-1201, SUV-1202, Xe models); 47 kg (SUV-1205)

Functions and Accessories

• Functions: Photometric measurement, kinetics, spectrum scan, DNA/protein tests and multi-wavelength tests
• Data Storage: Up to 1024M internal memory; results can be exported to Excel over USB
• Sample Compartment: Accepts a wide range of cuvette types, 5–100 mm (at extra cost)
• Optional Accessories: Automatic 8-cell holder, peltier/sipper system and 21 CFR-compliant software
• Lamps: The tungsten and deuterium lamps can be switched on and off separately to extend their life
